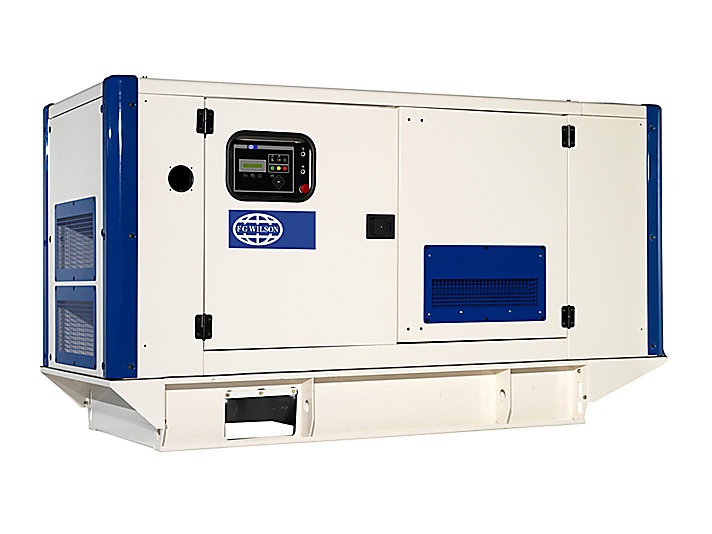

GENERATOR (FG Wilson P50) 45kVA 400V 50Hz 3ph, diesel

Definition

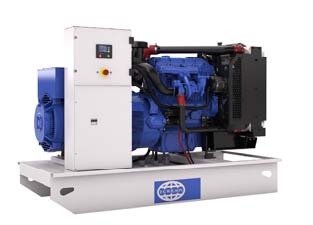

This generator is powered by the Perkins 1103A-33TG1, a 3-cylinder, 4-stroke, water-cooled diesel engine operating at 1500 rpm. The alternator delivers 400 V at 50 Hz and is fitted with an electronic AVR (R120) for stable voltage regulation. The generator is housed in a quiet, durable, and weather-resistant acoustic enclosure.

It is supplied with the FG100 control panel for start/stop and monitoring, with alternative options such as the Deep Sea DSE4520 available on request.

The standard configuration includes a bunded 145 L base fuel tank, engine coolant heater, battery charger, and 2-wire auto start/stop functionality. Other configurations can be specified when ordering.

Specifications

prime power 45 kVA 36 kW at 400/230V 50 hz
standby power 50 kVA 40 kW at 400/230V 50 hz
power factor 0.8
3-phase 1500 rpm
controller fg100
base fuel tank capacity about 145 l
operating ambient up to 50 °c with derating above that temperature

Technical specifications

turbocharged and water cooled.
mechanical governing. displacement 3.3 l.
nominal speed 1500 rpm.
fuel consumption prime 10.5 l h at 100 percent 7.8 l h at 75 percent 5.6 l h at 50 percent.
fuel consumption standby 11.7 l h at 100 percent 8.7 l h at 75 percent 6.0 l h at 50 percent.
oil 15w-40 with total oil capacity about 8.3 l.
alternator fg wilson fgl20060.
excitation shunt. avr model r120.
insulation class h. 4-wire winding.
ingress protection ip23 for alternator.
voltage regulation ±0.5 percent steady state.

Dimensions

L xWxH: 1680 mm × 760 mm × 1330 mm

Weight: 751 kg

Transport Dangerous Goods

Generators might be considered as dangerous goods for transport:

If a shipper or supplier provides written or electronic documentation stating that a flushing and purging procedure for flammable liquid powered engines has been followed in compliance with Special Provision A70 the generator is not subject to IATA DGR regulations

If not complying with Special Provision A70 then the generator must be managed in compliance to IATA DGR regulations

Instructions for use

Startup:
1. Ensure fuel level is above 50% and engine oil and coolant are within recommended levels.
2. Switch the main breaker OFF before starting.
3. Turn the control switch to AUTO (for automatic mode) or MANUAL (for manual start).
4. Press the START button. Wait until the engine runs smoothly at rated speed (1800 rpm).
5. Once stable, switch main breaker ON to supply the load.
Shutdown:
1. Disconnect the load (main breaker OFF).
2. Allow the generator to run without load for 2–3 minutes for cooling.
3. Press STOP or switch to OFF position.
4. In AUTO mode, the unit will stop automatically when mains power returns.

See: Remarks on generators

Maintenance

The usual maintenance interval is every 250 hours for this type of generator. For certain countries/locations a different maintenance interval might be applicable, check this with‌ your technical department.

Use the logbook generator 1500 rpm , article code: L041MECM19E-P.
