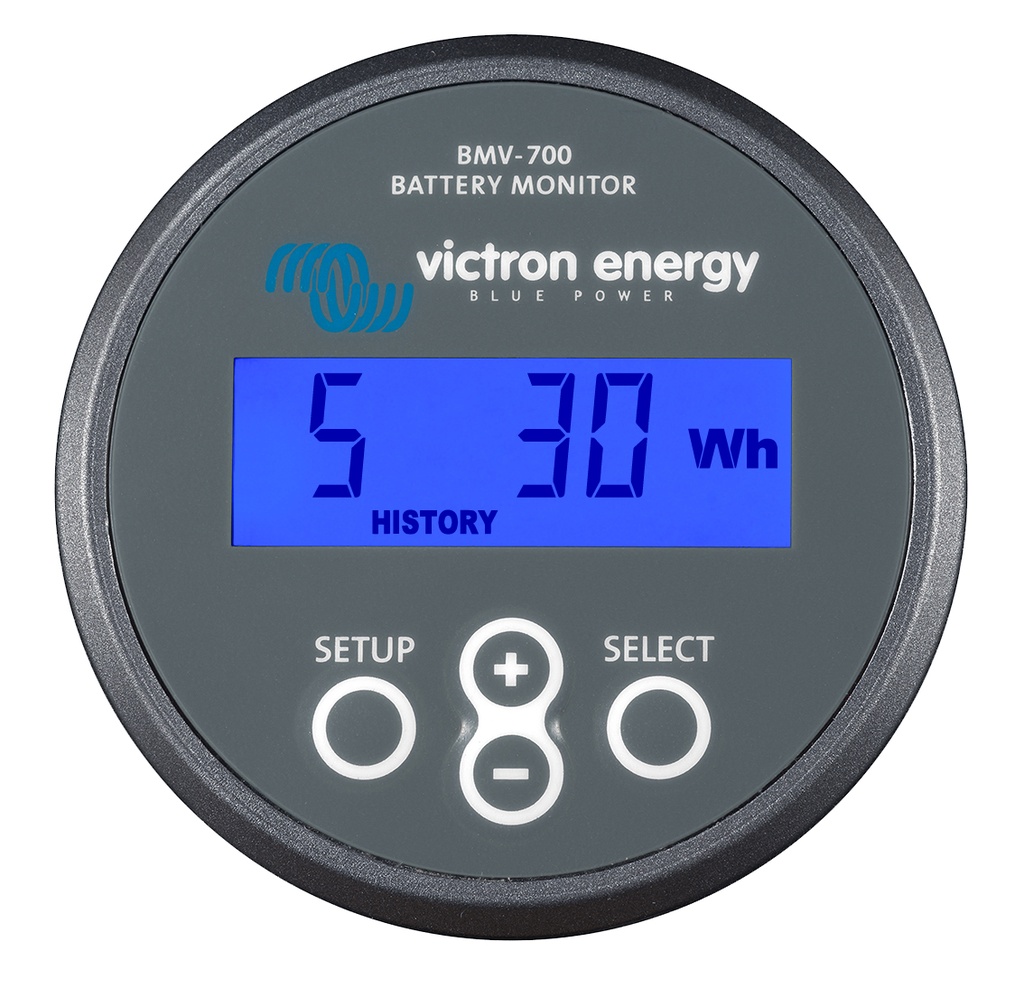

BATTERY MONITOR (Victron BMV700) 6.5/95V, 20/9999Ah

Form

Battery monitor for precise monitoring of battery systems.

  • voltage range: 6.5 – 95 V DC

  • protection: IP55 (indoor use only)

  • operating temperature: −40 to +50 °C

  • body diameter and depth: 52 × 31 mm

  • front bezel: 69 × 69 mm

Include :

  • 1 × 500 A / 50 mV shunt (with quick-connect PCB, M10 bolts)

  • 1 × 10 m RJ12 cable

  • 1 × 2 m battery cable with 1 A fuse

  • 1 × round bezel (mounted) and 1 × square bezel (separate)

  • 1 × securing ring for rear mounting

Per piece.

Fit

Works with battery banks from 6.5 to 95 V DC (12 V, 24 V, 48 V and others).
Compatible with lead-acid, lithium and other chemistries.
Shunt selection possible up to 10,000 A (with external shunts).
Communication: VE.Direct port, optional USB via adapter.
Relay: bistable relay 60 V DC / 1 A (normally open, invertible) for alarms or generator start.
Integration: connects to Color Control GX, Venus GX, Cerbo GX, and VRM Portal.

Bluetooth available only with optional VE.Direct Bluetooth Smart dongle.

Function

Measures and displays battery voltage, current, power, ampere-hours, and state of charge (SOC).
Calculates remaining time at current discharge rate.
Stores historical data: deepest discharge, cycles, SOC, events, and usage patterns.
Accuracy: ±0.01 V DC for voltage, ±0.01 A DC for current, ±0.1 % for SOC.
Very low current consumption: <4 mA (backlight off).
Programmable alarms (visual, audible) and relay actions.
Designed to protect and extend battery bank life, providing early warnings.

Limitations: Designed only for low-voltage DC systems (max 95 V DC), relay limited to 60 V DC / 1 A.

Storing conditions: Store in a dry indoor location, protect from shocks, dust and humidity, avoid long-term storage when connected to a deeply discharged battery.
