GENERATOR (FG Wilson P110) 100kVA 400V 50Hz 3ph, diesel
Definition

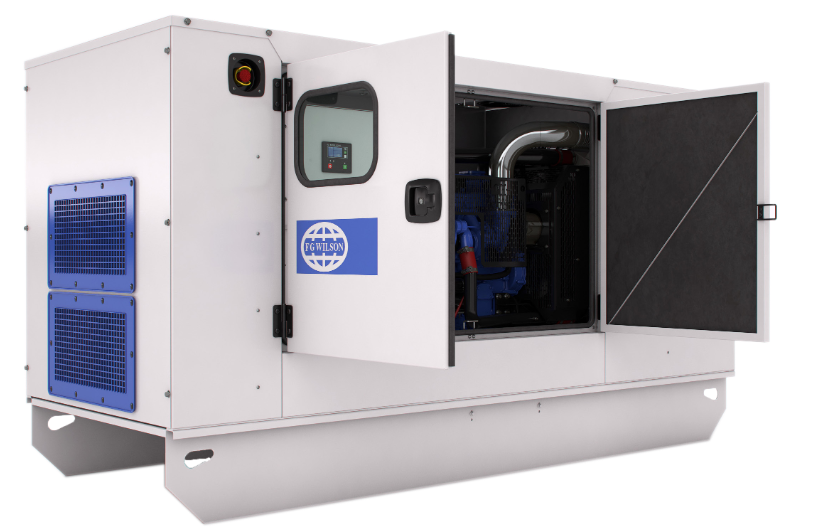

The FG Wilson P110 is powered by the Perkins 1104D-E44TAG2, a 4-cylinder, turbo charged, water-cooled diesel engine running at 1500 rpm. The generator delivers 400/230V at 50 Hz and is equipped with an electronic AVR (Automatic Voltage Regulator). It is housed in a quiet, and weather-resistant acoustic enclosure.
The unit is controlled by an FG100 control panel featuring a start/stop button and a single-menu layout for easy navigation.
The standard configuration includes a bunded long-range fuel tank, a water heater, a battery charger, and a 2-wire auto start/stop system. Other configurations and optional features can be specified when ordering.
Specifications
- output ratings: prime/standby: 100/110 kVA at 400/230 V, 50 Hz
- engine: Perkins 1104D-E44TAG2
- alternator: FG Wilson FGL30040 or equivalent
- control panel: FG100 or alternative
- fuel tank capacity: 218 litres
- fuel consumption at 100% load: prime/standby: 21.7/23.9 litres
- noise level: 68 dB(A) at 7 m
- running time: 11.5 hours at 75% load
- hard wired output only, no socket
Technical specifications
Engine:
- 4 cylinder, 4 stroke, in line diesel engine
- speed: 1500 rpm (for 50 Hz)
- gross engine power: prime/standby: 96/105 kW
- turbocharged, water cooled with mechanical regulator
- lubrication: engine oil, 8.4 liters, API CH4 15W-40
Alternator:
- output: 400/230 V, 50 Hz, 3-phase
- power rating: prime/standby: 100/110 kVA, 80/88 kW
- excitation system: SHUNT
- AVR model: R120
Dimensions
Dimensions (L × W × H): 1980 mm × 890 mm × 1374 mm
Weight: 1136 kg
Transport Dangerous Goods
Generators might be considered as dangerous goods for transport:
- If a shipper or supplier provides written or electronic documentation stating that a flushing and purging procedure for flammable liquid powered engines has been followed in compliance with Special Provision A70 the generator is not subject to IATA DGR regulations
- If not complying with Special Provision A70 then the generator must be managed in compliance to IATA DGR regulations
Instructions for use
For power calculations refer to your technical department .
Do not fill the fuel tank while the engine is running.
For maximum safety and earthing, refer to the MSF guidelines on energy.
Maintenance
The usual maintenance interval is every 250 hours for this type of generator. For certain countries/locations a different maintenance interval might be applicable, check this with your technical department.
Use the logbook generator 1500 rpm , article code: L041MECM19E-P.
