BATTERY ANALYZER (Fluke BT510)

https://unicat.msf.org/cat/product/77160
NST PELEMEASBF0

Valid Article

UN3481
Hazardous materials and products (identified by their 4-digit transport UN-number) must be transported under certain conditions as specified in the MSDS sheet (Material Safety Data Sheet).
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
https://unicat.msf.org/web/image/product.template/562671/image_1920?unique=f9dc7b0

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

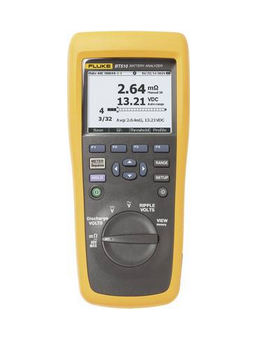

BATTERY ANALYZER (Fluke BT510)

Form

Battery analyzer designed for maintenance, troubleshooting and performance testing of stationary batteries.

  • materials: rugged handheld device with intuitive user interface and guided workflow

  • battery: 7.4 V 3000 mAh lithium-ion (BP500), operation time >8 hours, charging time ≤4 hours

  • protection IP40

  • safety rating: CAT III 600 V (derated to CAT II with protective cap), max 1000 V DC

  • operating temperature: 0 to 40 °C

  • dimensions: 220 × 103 × 58 mm

  • weight: 850 g

Includes:

  • 1 × bt510 battery analyzer

  • 1 × btl10 basic test lead

  • 1 × tl175 twistguard test leads

  • 1 × btl_a voltage/current probe adapter

  • 1 × bp500 lithium-ion battery

  • 1 × bc500 charger 18 V

  • 1 × power cord

  • 1 × mini-usb cable (1 m)

  • 1 × bcr zero calibration board

  • 1 × shoulder strap

  • 1 × belt strap

  • 1 × magnetic plate

  • 1 × c500s soft carrying case

  • 2 × spare fuses

  • documentation (safety sheet, quick guide, warranty, flukeview battery cd)

Per piece.

Fit

Supports stationary battery types including lead-acid (VRLA, AGM, gel, flooded), lithium-ion and NiCd.
Compatible with intercell strap resistance testing between batteries in a string.
Integrates with Fluke Battery Analyzer software for profile management, reporting and trend analysis.
Communication via mini-usb port for pc connection.
Not compatible with Fluke Connect or Bluetooth.

Function

Battery analyzer designed for maintenance, troubleshooting and performance testing of stationary batteries and battery banks used in critical backup applications.
Provides quick meter mode and guided sequence mode for strings with pass, warn and fail thresholds to standardize maintenance.
Records internal resistance, DC voltage, AC voltage and frequency, and ripple voltage to identify deterioration and capacity loss.
Offers discharge measurement mode to log multiple voltage samples during load tests.
Autosave and autohold capture stable readings and store them for later review and report generation.
Ensures safe operation in environments up to CAT III 600 V with measurement capability up to 1000 V DC.

Limitations :does not support temperature measurement and is not compatible with Fluke Connect or Bluetooth.

Specific MSF use :Enables preventive maintenance of hospital and mission-critical battery banks, supports troubleshooting of backup systems, reduces risk of unexpected battery failure in field operations.
