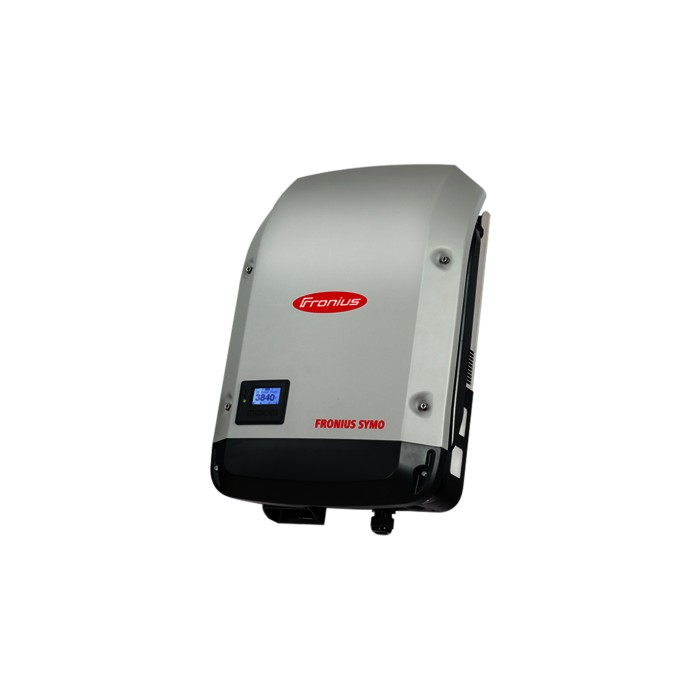

INVERTER PV (Fronius Symo 17.5-3-M) 17.5kVA 380/230V

Form

The inverter transforms the direct current generated by the solar modules into alternating current.
This alternating current is fed into the electric grid synchronously with the grid voltage.

  • inverter type: 3-phase transformerless
  • number of MPP trackers: 2
  • usable MPP voltage range: 200 – 800 V
  • DC voltage range: 200 – 1000 V
  • number of DC connections: 3 + 3
  • maximum PV generator output: 26.3 kWp
  • AC nominal output: 17.5KW
  • maximum output power: 17.5 kVA
  • AC output current: 25.3 A
  • dimensions (H × W × D): 725 × 510 × 225 mm
  • weight: 39.8 kg
  • water and dust protection: IP 6

Per piece.

Fit

  • the maximum input current per MPP tracker is 33 A / 27 A
  • solar panel strings can be connected with 2.5 – 16 mm² DC cables
  • AC output can be connected with 5-pole screw terminals (2.5 – 16 mm² cables)
  • includes integrated AFCI (Fronius Arc Guard) and rapid shutdown function
  • integrated data communication via Wi-Fi / Ethernet (Modbus TCP SunSpec, Fronius Solar API; RS422/RS485 available)
  • compatible with Fronius Solar.web, Solar.start and Solar.creator monitoring tools.

Function

A solar inverter converts the direct current (DC) produced by photovoltaic modules into alternating current (AC) synchronized with the grid.
Designed for grid-connected systems, it continuously monitors voltage, frequency and grid stability to ensure safe operation.

The inverter optimizes energy yield through dual MPP tracking, Dynamic Peak Manager and active cooling, ensuring maximum efficiency and reliable performance.
Integrated AFCI protection and communication interfaces enhance safety and facilitate remote monitoring.

The Fronius Symo Advanced 17.5-3-M has been developed exclusively for use in grid-connected photovoltaic systems.
