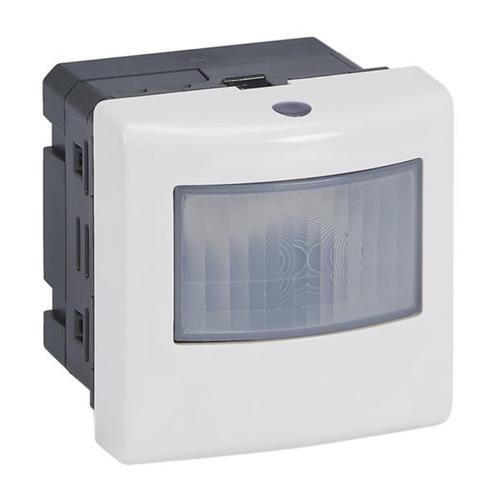

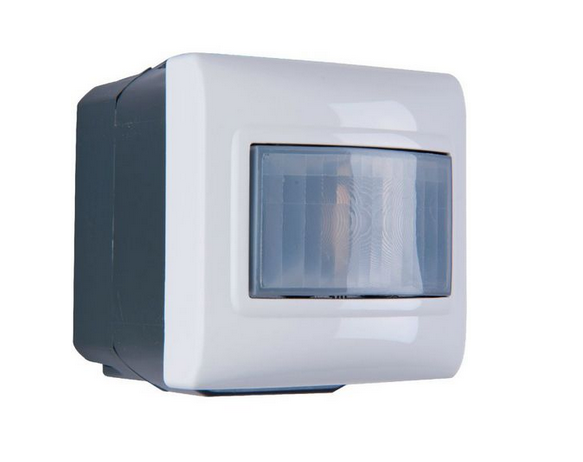

MOVEMENT DETECTOR (Legrand Mosaic) for all lamps
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
MOVEMENT DETECTOR (Legrand Mosaic) for all lamps
Form
A mouvement detector with or without neutral, with infrared detection.
Specifications:
- detection type: infrared (PIR)
- mounting type: flush-mounted (recommended height: 1.2 m)
- detection angle: 120°
- voltage: 100–240 V AC
- frequency: 50/60 Hz
- no-load power consumption: 0.2 W
- output: switching via 2-wire phase line
- wiring: 2-wire system
- weight: 93 g
- protection rating: IP40
- detection radius (at 1.2 m height): up to 8 m
Per piece.
Fit
This device can control a wide range of lamp types, making it suitable for various lighting applications. It supports LED lamps, compact fluorescents, halogen, incandescent bulbs, and low-voltage halogen lights with electronic or ferromagnetic transformers. Designed for versatility, it ensures reliable switching for both resistive and inductive loads.
Function
This movement detector allows a light source to be controlled automatically by detecting movement in a monitored area. It improves energy efficiency and user comfort by replacing a traditional manual mechanical switch, making it ideal for hallways, bathrooms, offices, and other frequently used spaces. Replaces the use of a traditional mechanical switch.
