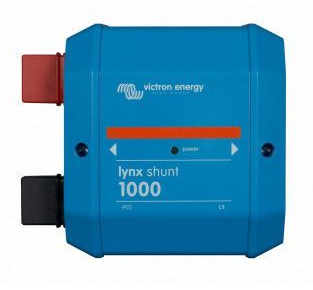

BATTERY MONITOR (Lynx Shunt VE.CAN) 9-70Vdc, 1000Adc

Form

A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring enabling safe distribution and system supervision.

  • continuous, system voltages: 12/24/48 VDC
  • minimum quality requirements and standards: rated current 1000 A
  • material: abs housing, tinned copper busbar
  • protection: IP22
  • operating temperature: -40 °C to +60 °C
  • thermo-sensitivity: avoid exposure above rated limits, max. 95% humidity, non-condensing
  • dimensions: 190 × 180 × 80 mm
  • weight: 1.4 kg

Includes:

  • 1 x battery monitor
  • 2 × VE.can RJ45 terminators
  • 1 x temperature sensor
  • 1 x fuse dummy busbar
  • 1 x quick guide

Per piece.

Fit

Connections:

  • M10 busbar connections for batteries, loads, or chargers
  • screw terminals for alarm relay and temperature sensor

Interfaces and interconnections:

  • VE.can RJ45 communication ports (terminators included)
  • RJ10 interface to lynx distributor, alarm relay contact 3 A @ 30 VDC/ 250 VAC

Compatibility:

  • integrates into victron lynx distribution system (lynx power in, lynx distributor, lynx smart bms)
  • supports CNN, ANL or MEGA fuses (purchased separately).

Function

Used for monitoring battery voltage, current, energy, charge level, and temperature, and for holding the main system fuse or moving it using the included fuse busbar.


Usage: connect batteries on the left side and DC loads/chargers on the right side, configure and monitor via gx device or vrm portal, relay can trigger alarms or control equipment based on soc, voltage, temperature or fuse status.


Limitations: protection class IP22 (not waterproof); reverse polarity protection not available, fuses not included and must be selected according to system requirements.

Durability:rated for continuous 1000 a at up to 48 VDC, designed for long-term integration in modular lynx busbar system.

Storing conditions: store in dry environment at -40 °c to +65 °c in original packaging.
