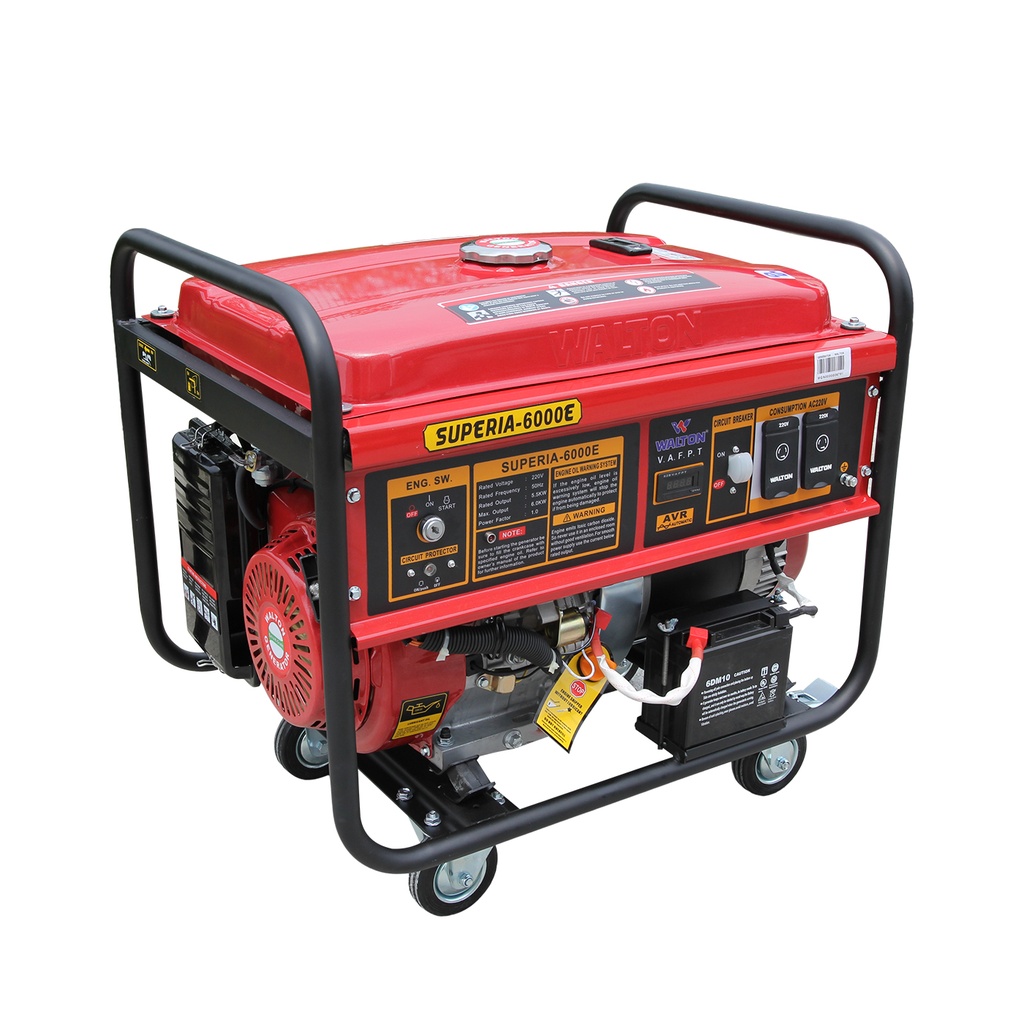

GENERATOR (WALTON SUPERIA-6000E) 6kVA 230V 50Hz, petrol
NSL
PELEGENEW060
Valid Article
Last Updated on:
22/07/2025, 22:02:30
GENERATOR (WALTON SUPERIA-6000E) 6kVA 230V 50Hz, petrol
Definition
Compact, transportable petrol generator, INTENDED FOR EMERGENCIES.
Specifications
Generator:
- type: single phase
- maximum output single phase: 6 KW
- rated output single phase: 5 KW
- rated voltage: 230 V
- rated frequency: 50 Hz
- rated current: 22 A
- starter system: manual and electric
- speed: 3000 rpm
- automatic voltage regulator: yes
- cooling system: air-cooled
- noise level: 75 dB(A)
- dimensions (LxWxH): 675 x 520 x 550 mm
- weight: 83 kg
Motor:
- fuel: petrol
- engine model: 186F
- engine type: 4-stroke, 1 cylinder
- tank capacity: 25 liter
- operating time at rated power: 8 hours
Transport Dangerous Goods
Generators might be considered as dangerous goods for transport:
- If a shipper or supplier provides written or electronic documentation stating that a flushing and purging procedure for flammable liquid powered engines has been followed in compliance with Special Provision A70 the generator is not subject to IATA DGR regulations
- If not complying with Special Provision A70 then the generator must be managed in compliance to IATA DGR regulations
Instructions for use
Refer to your technical department for power calculations.
Some models have a 12 V DC outlet. Even if this can be used to charge a battery, it is not recommended to do so. It is better to use a battery charger.
Do not fill the fuel tank while the engine is running.
For maximum safety and earthing, refer to the MSF guidelines on energy.
Maintenance: every 100 hours.
Do not waste time and money on significant repairs.
