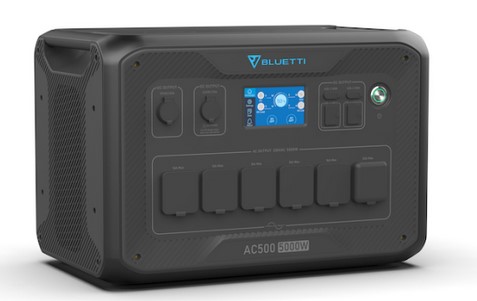

POWER STATION power unit (Bluetti AC500) EU version

Form

Portable and expandable power station designed for off-grid and emergency power supply.

  • battery rated for over 3,500 charge cycles to 80 % capacity
  • thermo-sensitivity: operating temperature range from -20 °C to 40 °C, charging recommended at 0 °C to 40 °C
  • dimensions: 520 × 325 × 358 mm
  • weight: 30 kg (main unit without expansion battery)

Includes:

  • 1 x power station
  • 1 x AC charging cable 15 A
  • 1 x solar charging cable (MC4 to aviation plug)
  • 1 x car charging cable (MC4 to cigarette lighter)
  • 1 x user manual

Per piece.


Fit

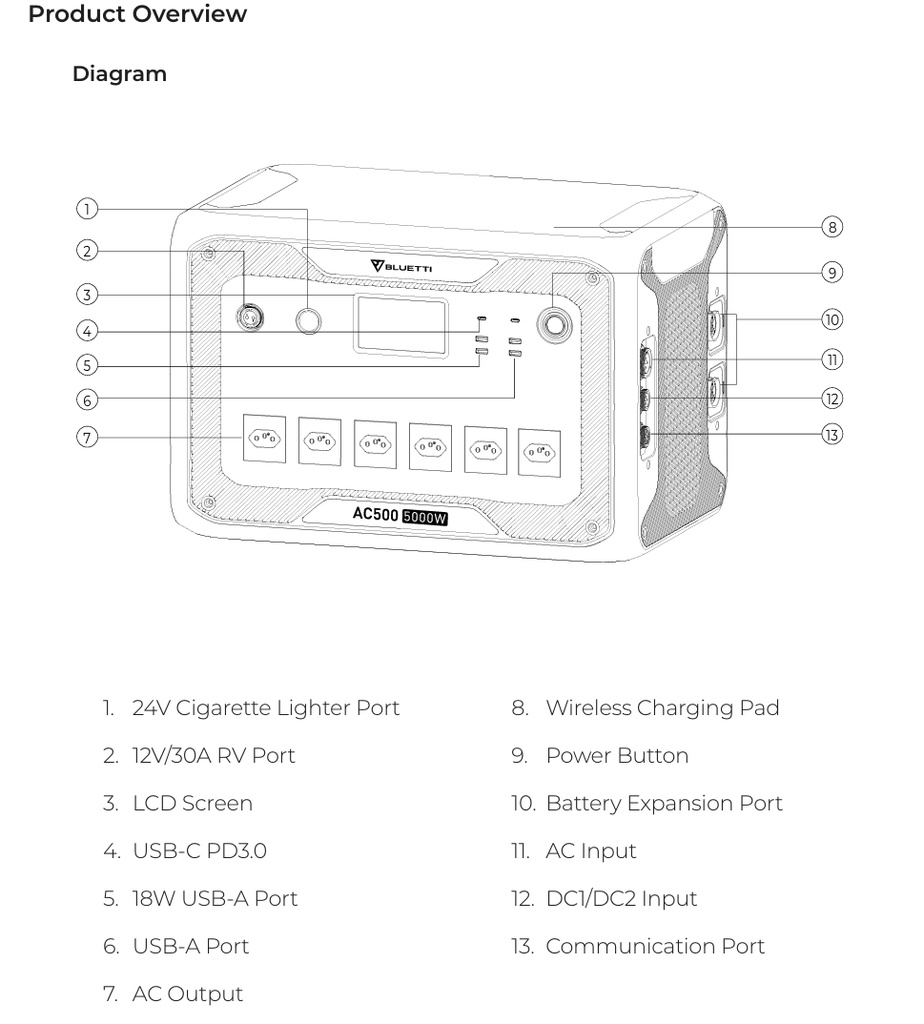

Interfaces and interconnections:

  • 6 x AC output ports: 230 V (EU version) pure sine wave sockets
  • DC output:
    • 1 × 12 V/30 A RV port
    • 1 × 24 V/10 A car outlet
    • 2 × 12 V/10 A DC5521 ports
  • USB outputs:
    • 2 × USB-A 5 V/3 A
    • 2 × USB-A QC3.0
    • 2 × USB-C PD 100 W
  • 2 x wireless charging pads: 15 W

Input ports:

  • AC charging input
  • solar PV input, up to 3000 W
  • DC charging input

Electrical interface: modular connection port for up to six B300S expansion batteries supports parallel operation with another AC500 for increased output.

Compatibility: integrates with Bluetti battery modules (B300S, B300) and Bluetti app via Bluetooth/Wi-Fi for monitoring and control.

Function

Provides high-capacity, pure sine wave AC and regulated DC power for residential backup, off-grid living, mobile workstations, and field operations.

Usage: connect to expansion battery packs, then plug loads into AC/DC/USB ports recharge via AC wall outlet, solar panels, generator, or vehicle alternator monitor via touchscreen or mobile app.

Specific use: can serve as a silent, emission-free alternative to diesel generators for powering communication, medical, or IT equipment in field hospitals or remote clinics, especially when paired with solar arrays.

Durability: LiFePO₄ cells rated for >3,500 cycles to 80 % capacity built-in advanced battery management system (BMS) with overvoltage, overcurrent, overtemperature, and short-circuit protection.

Limitations: requires a connection to at least one compatible battery pack to function maximum output and capacity depend on battery configuration.

Storing conditions: store in a cool, dry place at partial charge avoid prolonged storage at full or empty capacity.

Use precautions:

  • avoid exposure to moisture or direct rain
  • ensure ventilation during high-power operation
  • follow correct polarity and voltage limits for solar input
