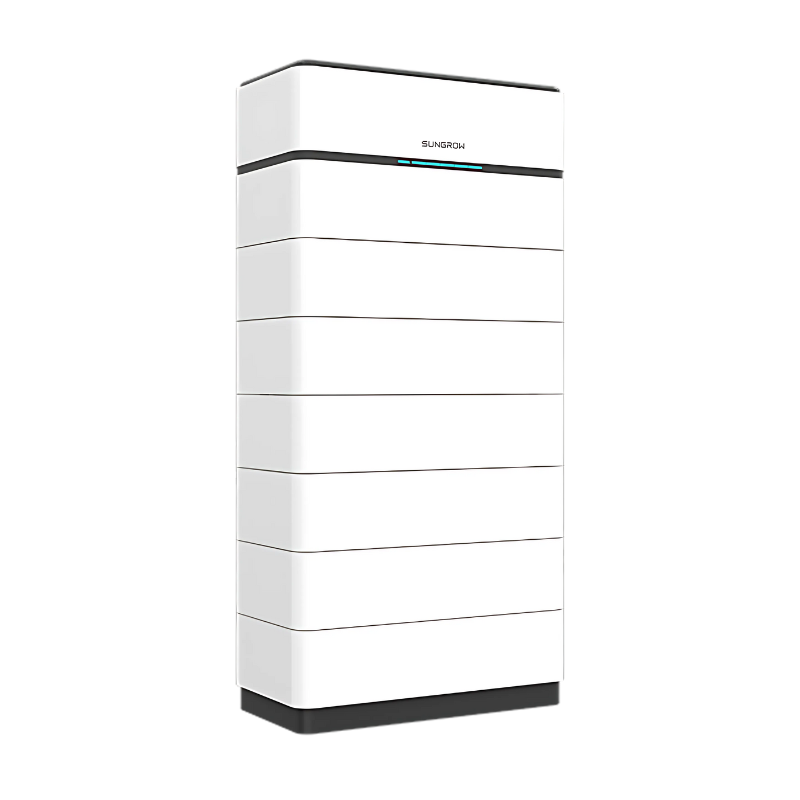

BATTERY lithium (Sungrow SBH350) 35kWh, 493VDC

High-voltage modular lithium-iron-phosphate (LiFePO₄) battery storage system with a total usable capacity of 35.0 kWh, designed for hybrid solar and backup applications.

• shape: Floor-standing tower with base and stackable modules

• material: LiFePO₄ cells in metal and plastic enclosure, IP55 rated for indoor or outdoor use

• nominal voltage: 492.8 V DC (operating range 415.8 – 562.1 V DC)

• usable energy capacity: 35.0 kWh

• continuous charge/discharge current: 50 A

• rated power: 24.64 kW

• operating temperature: Charge 0 to 50 °C / Discharge –20 to 50 °C

• cooling: Natural convection

• dimensions: 675 mm (W) × 1380 mm (H) × 350 mm (D)

• weight: 331 kg (base plus 7 modules)

Includes: 1 × base unit / 7 × battery modules / 1 × power cable set / 1 × communication cable set

Per piece.

• compatible with Sungrow hybrid inverters (SH15 / 20 / 25T series)

• modular system allowing 2 to 8 modules per tower (10 to 40 kWh), up to 4 towers in parallel (160 kWh max)

• plug-and-play stack connection (no inter-module cabling)

• communication interface: CAN bus for data exchange with Sungrow hybrid inverters

• requires high-voltage DC connection (10 mm² cable rated to 1000 V)

• suitable for residential and commercial PV or hybrid backup systems







Stores electrical energy for later use in self-consumption, backup power and peak-shaving applications.
Provides up to 24.64 kW continuous power through high-voltage LiFePO₄ modules.
Designed for hybrid PV systems requiring fast charge/discharge capability and long cycle life.
Recommended for critical load support in hospitals or off-grid installations when integrated with Sungrow hybrid inverters.
Ensure adequate ventilation and temperature control during operation and storage.
