CHLORINE PRODUCTION (Wata-Standard) set

Form

WATA-Standard™ unit.

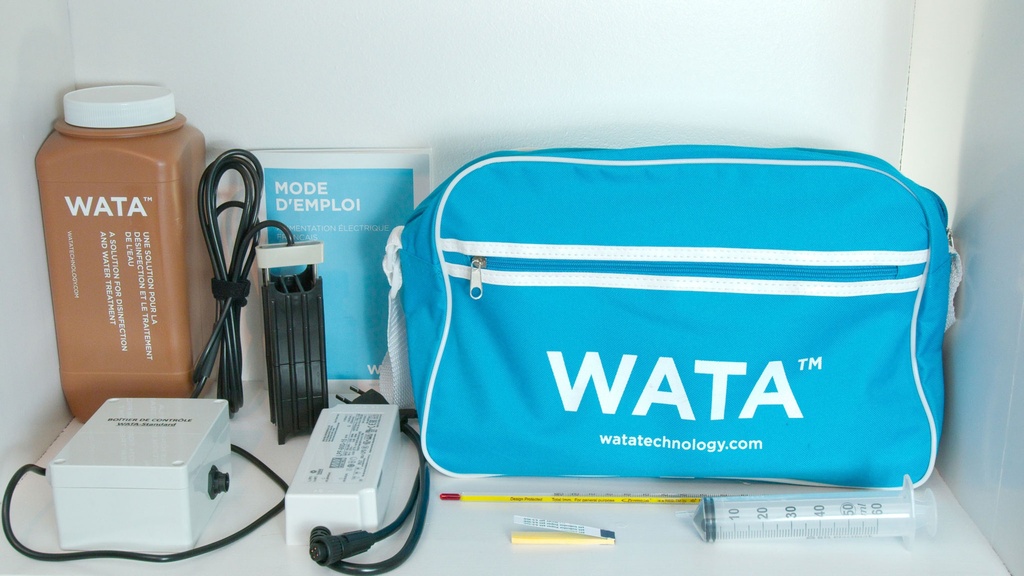

Content:

  • 1 control box
  • 1 power supply 15V/5A
  • 1 syringe of 50ml
  • 1 production bottle
  • 1 kit WataTest™
  • 1 kit WataBlue™
  • 1 pH test
  • 1 thermometer
  • 1 production controler
  • 1 user manual

Specifications:

  • Production time‌: 2h
  • Chlorine solution volume produced per cycle ( 5g/L ): 2l
  • Disinfection application (per cycle):
    - 2l of 0.5% solution
    - 10L of 0.1% solution
    - 20l of 0.05% solution
  • Max. number of cycles over 24h: 6
  • Nominal power rating: 36W
  • Electrical power supplied: 15V/5A
  • Device dimensions: 150 x 60 x 50 mm
  • Kit weight: 2.4 kg

Fit

See consumables in relations below.

Function

This device produces a 0.5% concentrated sodium hypochlorite solution (or 5 g of active chlorine per litre) from brine. It uses the electrolysis process and requires only clear water (< 5NTU) and salt. It is an interesting alternative to MSF's standard chlorinated product (Nadcc / HTH) and allows the mission to be autonomous and free from transport and storage constraints. This is the standard version of the WATA range.

Storage of produced chlorine solution: in a closed, non-metallic labelled container, and away from heat.

Chlorine solution produced has 24h shelf-life (= you must use within 24h after production time) under recommended storage conditions. Possibility to extend shelf-life up to three months with Wata-Stab kit.
