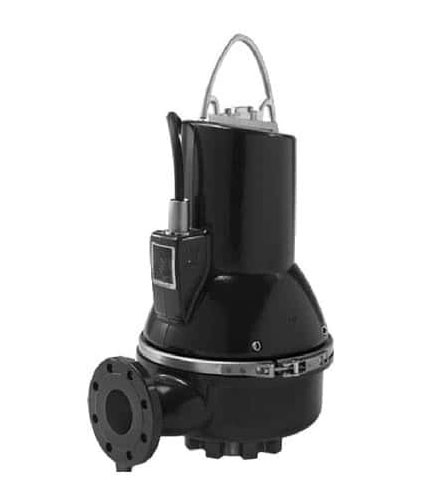

ELECTRICAL PUMP (Grundfos SLV 65.65.09.2.50B) 3 x 400-415

Form

  • 3 phase, submersible sewage pump, used to pump sewage or wastewater containing solids up to 65 mm in diameter.
  • Designed for sewage systems, not suitable to empty latrines nor septic tanks.
  • Pump specifications:
    • Rated Flow: 4.31 l/s.
    • Maximum Flow: 6.81 l/s.
    • Rated Head: 3.58 m.
    • Maximum Head: 7.5 m.
    • Rated Power (P2): 0.9 kW.
    • Power Input (P1): 1.4 kW.
  • Size and Dimensions:
    • Free Passage: 65 mm (maximum particle size).
    • Outlet Connection: DN 65 (DIN standard).
    • Pressure Rating for Connection: PN 10.
  • Net Weight: 42 kg.

Fit

  • Fittings:
    • Type of Outlet Connection: DIN.
    • Size of Outlet Connection: DN 65.
  • Interfaces and Interconnections:
    • Rated Voltage: 3 x 400-415 V.
    • Rated Current: 2.8 A.
    • Starting Current: 21 A.
    • Method of Start: Direct-on-line (DOL).
    • Power Cable Type: H07RN-F, 10 m length (no plug included).
  • Installation Requirements:
    • Installation Type: Submerged.
    • Maximum Installation Depth: 7 m.
    • Cooling Jacket: Not included.
    • BEWARE !! External thermal protection required
    • Maximum Starts per Hour: 30.

Function

  • Limitations:
    • Operates in liquid temperatures between 0°C and 40°C.
    • Maximum operating pressure: 6 bar.
    • Not equipped with moisture or water-in-oil sensors.
  • Pump sewage and wastewater with solids.
  • Designed for sewage systems, as a fixed submerged installation.
  • Requires control box and electrical external protection.
  • Non self-priming pump
  • Contact your WatSan/EH advisor for support.
