GSM COMMUNICATION SET (Studer XCOM-GSM)

Form

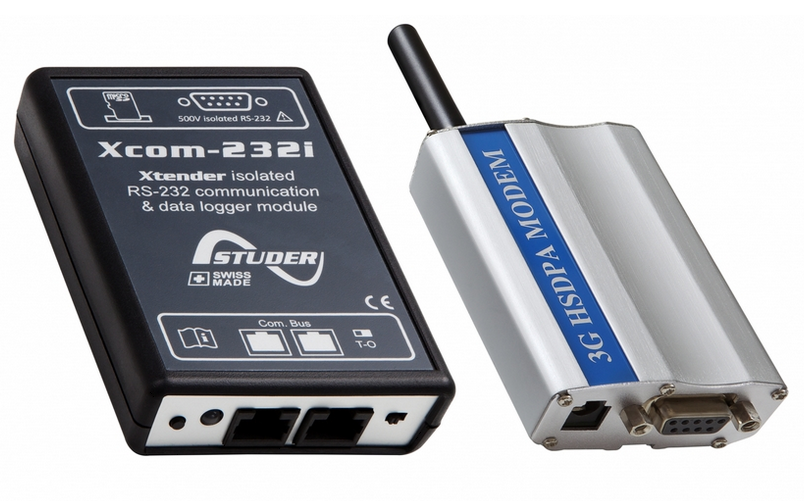

GSM COMMUNICATION SET for Studer Xtender systems, composed of Xcom-232i module and external 3G GSM modem.

  • indicator: bi-coloured LED for status (operation, data logging, errors, update, communication)
  • control: push button on Xcom-232i to activate/deactivate datalogger
  • storage: MicroSD / MicroSDHC ≤ 32 GB (not compatible with MicroSDXC)
  • dimensions (Xcom-232i): 90 × 73 × 26 mm
  • weight (set): ~1.0 kg

Includes:

  • 1 × XCOM-232i
  • 1 × 2 m communication cable
  • 1 × MicroSD card with adaptor
  • 1 × 0.25 m serial cable
  • 1 × XCOM-232i user manual
  • 1 × XCOM-GSM / XCOM-LAN user manual
  • 1 × mounting plate
  • 2 × DIN rail clips and screws
  • 1 × 3G cellular modem (WCDMA)
  • 1 × external antenna
  • 1 × 0.5 m power supply cable RJ45–Jack
  • 1 × sliding pin
  • 1 × 3G cellular modem datasheet

Per set.

Fit

  • communication ports: RS-232 serial (galvanically isolated), CAN bus
  • GSM modem: connects via RS-232 and supplied power cable, supports SIM card (not included)
  • supported frequencies: 850 / 900 / 1800 / 1900 / 2100 MHz (3G WCDMA)
  • bus termination: switch on Xcom-232i (T = terminated at ends, O = open otherwise)
  • RS-232 parameters: 38,400 bps, 8 data bits, even parity, 1 stop bit
  • integration: connects to Studer communication bus (Xtender, VarioTrack, VarioString, BSP, RCC)
  • MicroSD slot: for firmware updates, configuration files, backup/restore, and data logging

Function

Provides remote supervision and control of Studer Xtender systems via GSM mobile network.

  • virtual RCC-02/03 interface accessible via Studer Xcom portal (web interface)

  • real-time monitoring of voltages, currents, states, alarms and events

  • remote configuration and firmware updates for Xtender, BSP, and related modules

  • data logging on MicroSD (CSV files, minute resolution) and retrieval through the portal

  • SMS and email alerts (requires third-party SMS credits)

  • possibility to share access with third-party users for support

Limitations:

  • requires GSM coverage and SIM with data plan (≈ 2 MB/month for basic use, up to 60 MB/month with datalogger enabled)

  • only compatible with Studer modem (no third-party modems)

  • indoor use only, must be protected from humidity, dust, shocks and condensation

  • MicroSD must be present for data logging, if full or absent, data is lost

Durability:Robust design for continuous remote monitoring in professional and industrial environments.

Storing conditions:Keep in a dry, temperate environment, protected against shocks, ESD, moisture and dust.
