CHLORINE PRODUCTION (Wata-Plus solar) set

Form

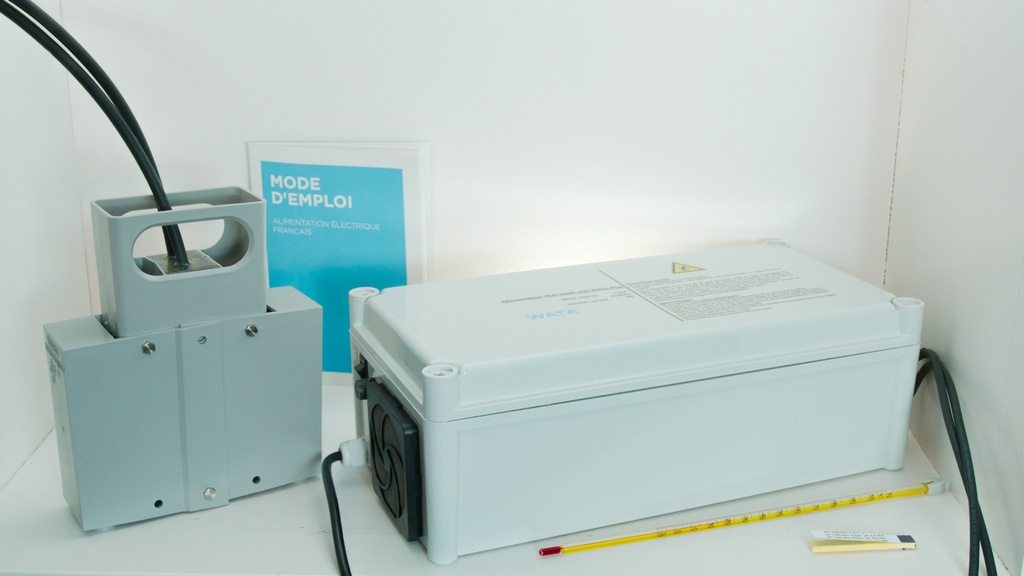

WATA-Plus™ solar unit.

Content:

  • 1 control box
  • 1 syringe of 50ml
  • 1 kit WataTest™
  • 1 kit WataBlue™
  • 1 pH test
  • 1 thermometer
  • 1 user manual
  • Solar panel with battery

Specifications:

  • Production time: 2h
  • Chlorine‌ solution volume produced per cycle (5g/l): 15l
  • Disinfection application (per cycle):
    - 15l of 0.5% solution
    - 75l of 0.1% solution
    - 150l of 0.05% solution
  • Max. number of cycles over 24h: 1
  • Nominal power rating: 216W
  • Solar kit option: 12V/2x100W peak / 80Ah), capacity of 1 productions per day
  • Device dimensions: 180 x 60 x 240 mm
  • Device weight: 1.3 kg

Fit

Voir les consommables dans les relations ci-dessous.

Function

This device produces a 0.5% concentrated sodium hypochlorite solution (or 5 g of active chlorine per litre) from brine. It uses the electrolysis process and requires only clear water (< 5NTU) and salt. It is an interesting alternative to MSF's standard chlorinated product (Nadcc / HTH) and allows the mission to be autonomous and free from transport and storage constraints. This version is powered by photovoltaic generators.

Storage of produced chlorine solution: in a closed, non-metallic labelled container, and away from heat.

Chlorine solution produced has 24h shelf-life (= you must use within 24h after production time) under recommended storage conditions. Possibility to extend shelf-life up to three months with Wata-Stab kit.

Mind you, only one production cycle / day max !
