PHOTOMETER portable (Palintest Lumiso Expert) water testing
Definition
For drinking water, wastewater and environmental analysis.
To be used with Palintest slow dissolution tablet reagent or liquid reagent.
Item to be justified when ordering.
Specifications
Wavelengths 530 nm, 575 nm, 620 nm
Peak Wavelengths ±2 nm
Accuracy +/-1%T
Display Full Colour TFT - 16:9 ratio screen, resolution 800 x 480 px
User Interface PCAP touch panel
IP Rating & Standards IP67
Power Supply 6 x AA 1.5V Batteries or Standalone USB
Connectivity Via Windows App (USB) or Mobile App (QR Code)
Memory Capacity Access to 1,000 results via device's screen
Battery Life 5,000 tests on one charge
Norms
EN61326,
EN61010,
IP67
EN60068-2-78

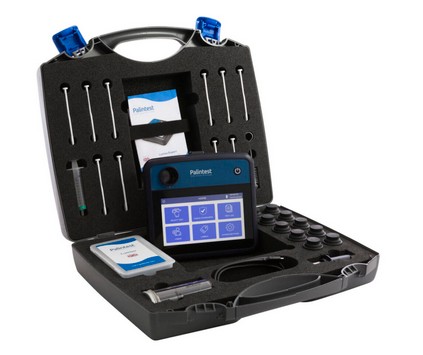

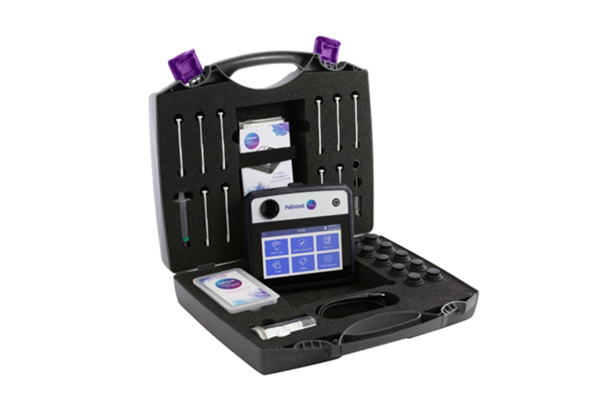

Components
Contains:
Lumiso Pooltest Expert Instrument 1
Dilution Tube 1
Syringe, Luer Slip, 10mL 1
Polishing Cloth 1
Test Tube Brush, 12cm 1
USB lead 1
Quick Start Guide 1
Absorbent Cloth 1
Crush/Stir Rod 10
Cap for 15mL Vial 10
15mL Snap Cap Vial 10
Lumiso Benchtop Case 1
Reusable Reagent Box 1
Dimensions
W x L x H (mm) 211 x 195 x 52
Instructions for use
Maintenance
Keep the optics clean:
Clean optical windows gently with a soft, non-abrasive cloth dampened with water or anti-static foam cleaner. Do not use solvents.
Check standards:
Using check standards is a simple way to verify the performance of the instrument and check that it is within calibration.
Storage
Remove batteries (6xAA) before storage !
