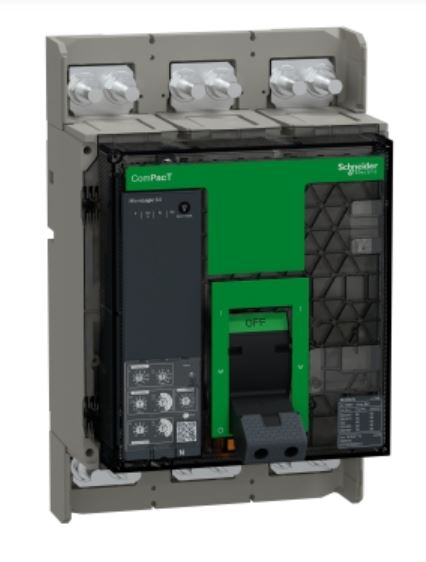

MCCB moulded (C100N420FM) 1.5-10In 1000A 50kA, 4P
NST
PELEMCCS4QT0S
Valid Article
HS Code:
853690
Last Updated on:
02/05/2025, 22:02:39
Former
Code(s):
PELEMCBS4QT0
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
MCCB moulded (C100N420FM) 1.5-10In 1000A 50kA, 4P
Form
Circuit breaker 4 pole, 1000 Amps, 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2.
- An electronic MicroLogic 2.0 control united integrated which provides customizable long-time and instant protection (ANSI code 49/50)
- Manually operated
- Single terminal, top or bottom rigid wire(s) 1-45 mm² max
- Single terminal, top or bottom flexible wire(s) 1-45 mm² max
- Operational temperature: -25 +70 °C
- IP40 protection
- Height: 327 mm
- Width: 280 mm
- Depth: 147 mm
- Weight: 18 kg
Per piece.
Fit
Compatible with main circuit and distribution boards of similar make and technical specifications.
Function
Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.
A circuit breaker functions by interrupting the continuity of electrical flow through the circuit once a fault is detected.
