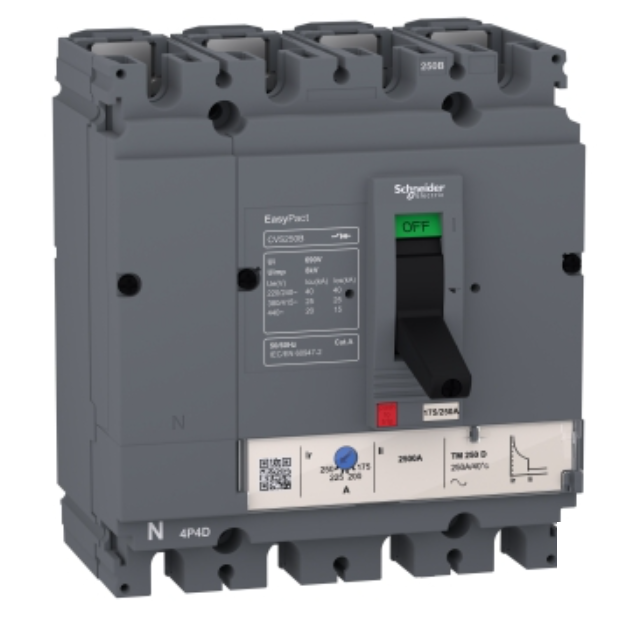

MCCB moulded (CVS100B) 0.7-10In 100A 25kA, 4P

Form

Molded case circuit breaker for low voltage distribution

  • rated current (In): 100 A

  • rated impulse withstand voltage (Uimp): 8 kV

  • rated breaking capacities (Icu): 40 kA @ 220/240 V AC, 25 kA @ 380/415 V AC , 20 kA @ 440 V AC.

  • service breaking capacity (Ics): 40 kA @ 220/240 V AC , 25 kA @ 380/415 V AC , 15 kA @ 440 V AC.

  • trip unit: TM-D thermal-magnetic, long time Ir adjustable 0.7–1 × In (70–100 A), instantaneous Ii fixed at 800 A.

  • protection type: thermal overload and magnetic short-circuit.

  • neutral position: left, unprotected (3 protected poles + neutral).

  • control type: toggle handle with contact position indicator

  • durability: mechanical 30 000 cycles / electrical 12 000 cycles at In 415 V.

  • IP degree: IP40.

  • operating temperature: −25 to +70 °C.

  • dimensions (W × H × D): 140 × 161 × 86 mm.

  • weight: 1.9 kg.

Includes : 1 × MCCB (4P 3d, TM-D 100 A).
Per piece.

Fit

  • Insatalation: main or sub-distribution feeders in LV networks (3-phase + neutral unprotected).

  • Mounting: fixed on backplate front connection (top/bottom)

  • Terminals: screw connection (35 mm pitch).

  • Accessories compatibility : Vigi add-on earth-leakage module, auxiliary contacts (OF/SD), shunt trip (MX), undervoltage release (MN)

  • Compatible with EasyPact CVS family

Function

Provides overload and short-circuit protection for low-voltage distribution circuits.
The adjustable thermal element (70–100 A) ensures adaptability to cable and feeder sizes, while the fixed magnetic trip (800 A) guarantees instant disconnection under fault conditions.
The 25 kA breaking capacity at 415 VAC makes it suitable for building and industrial distribution boards subject to moderate short-circuit levels.
Also serves as a main isolation device with positive contact indication.
